Mount Gambier Food Processing Facility Weighbridge

WEIGHBRIDGE:

Multi-Deck Weighbridge

DECK:

30M Multi-Deck
4m + 6m + 10m + 10m

LOCATION:

Mount Gambier
SA

Description :

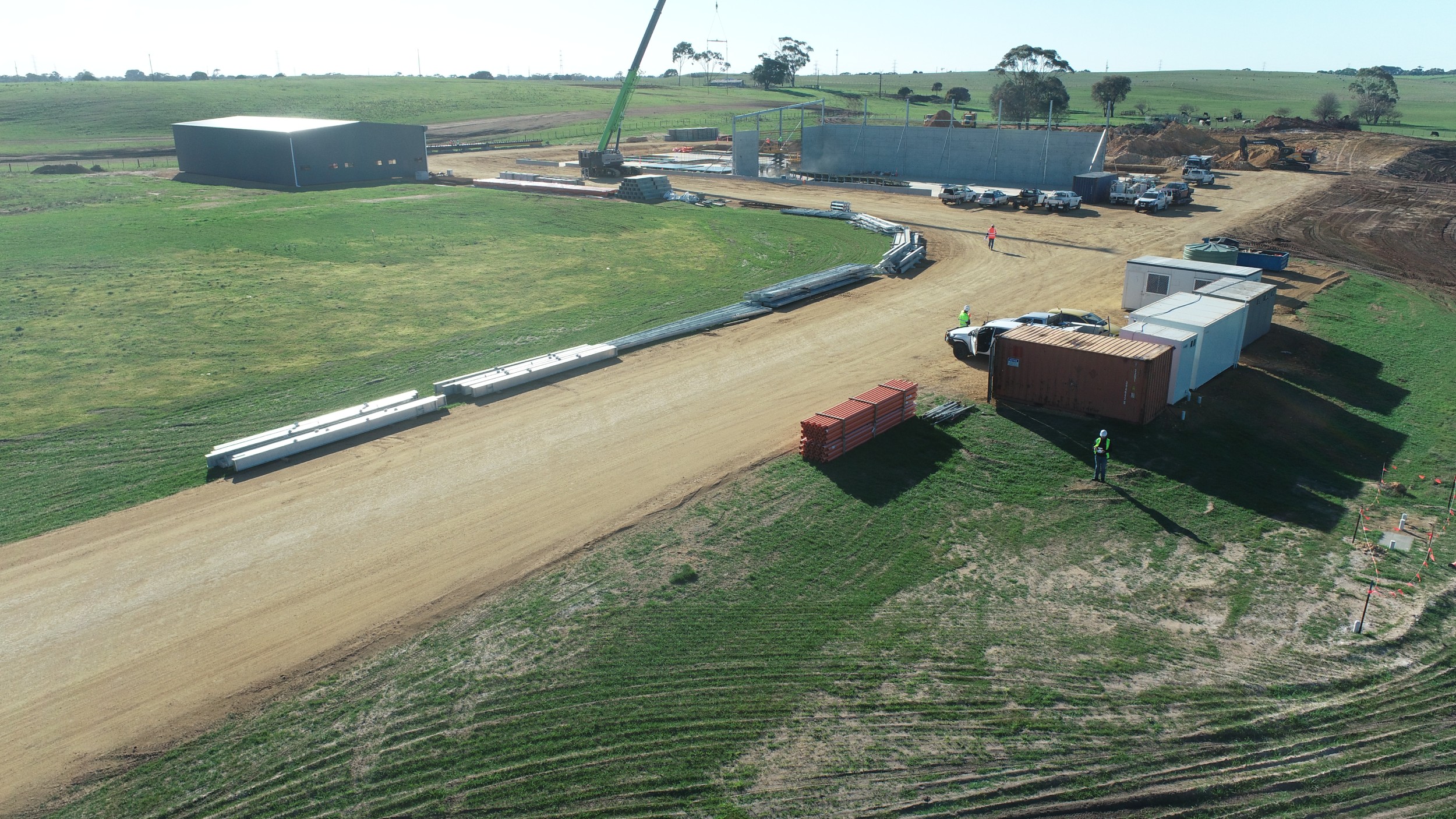

New bridge constructed on newly developed site
Anmar Scales completed the supply of footing design, manufacture, delivery, and installation of the weighbridge. Client constructed footing.
The instrumentation consists of a DC System (Driver-Controlled System). Currently, this system will be used in dual directions. The inbound 920i (Slave Indicator) will capture the truck’s first weight and all required info for a particular transaction. The second 920i (Master Indicator) will recall the first weight details recorded on the slave indicator, capture the second weight, complete the transaction, and print a slip.

Electronics:

16 x Rice Lake Load Cells
2 x Rice Lake 920i Indicator
2 x AnyLoad Remote Displays
