FAST INSTALLATION • RELOCATABLE • TRADE APPROVED
PCM M1500E Weighbridge
Fast site installation by standardized steel-concrete or full steel modules with a width of 1375mm, allowing the construction of platforms up to 48 meters long and 3.35 meters wide.
Removable central crosswalk of 600mm wide.
Structure with intelligent profiles, designed using the finite element calculation program (EMRC-NISA II) and fully welded by robot.
Bridge height of 400mm has been re-engineered specifically to meet Australian standards.
Simple and low-cost installation on the ground with access ramps, or built-in, with a pit of only 400 mm deep.
FAST INSTALLATION • RELOCATABLE • TRADE APPROVED
PCM M1500E Weighbridge
Reduced assembly time due to the ease of fitting the deck modules directly to the traverse beams with a minimal number of bolts required.
All assembly operations are carried out from the top of the platform.
The placement of the load cells and the stainless steel cup system is performed without fastening screws. The end and centre traverse beams carry the load cells assembled from the factory.
General wiring and connections then made onsite through pre-installed conduits.

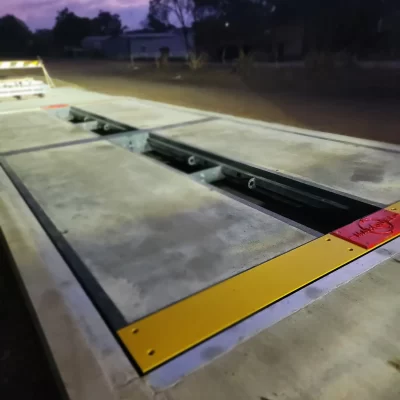

The PCM M1500e has upper covers to access the load cells and the summing boxes while also facilitating the cleaning and maintenance of the weighbridge.
Fully Modular
Relocating your weighbridge is a simple process.
Fast Installation
Delivered, installed, and calibrated within days.
Cost Effective
Less concrete than traditional weighbridge designs.
Built Tough
Welded by robot using only high-quality European steel.
Trade Approved
Compliant with all vehicle weighing legislation.
Backup Support
Any problems and our famous after-sales service kicks in.
BALANÇAS MARQUES PCM M1500e
Weighbridge Solutions
ABOVE GROUND
CONCRETE RAMPS
ABOVE GROUND
METALLIC RAMPS
FULLY PITTED
BUILT-IN
NEED MORE INFORMATION?
Modular Weighbridge Brochure
Click the link below to download the brochure in PDF.
THE ALL IMPORTANT TECH SPECS
Technical Specifications
SURFACE FINISH
Painted, with pickling by granulation to ensure a perfect adhesion of the primers and Epoxy enamels. Finish the main structure with RAL 7046 enamel. It is also possible to paint with other colours. Full galvanization is also available.
CONCRETE
40mpa Concrete infill to modules. Concreting to take place on-site. Two A500ER welded mesh layers installed prior to delivery.
LOAD CELLS
Analog MC-CT 30t Models, entirely in stainless steel, with IP68 protection.
LENGTH OF CELL CABLES
15 meters (option: Anti-rodent cables)
LOAD CELL SUMMING BOX
Summing box made of aluminium, with for either 4, 6, 8 or 10 load cells.
BOLTS
Quality high tensile 8.8 zinc.
CENTRAL OPENING
Demountable grids of 600mm wide.
MARQUES WEIGHBRIDGES IN ACTION

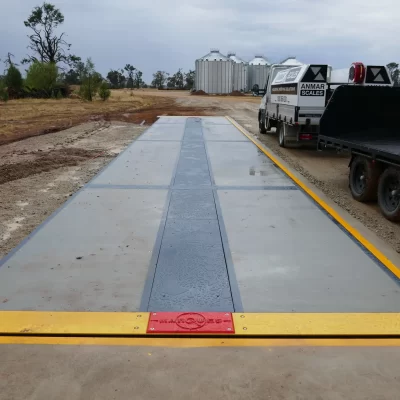

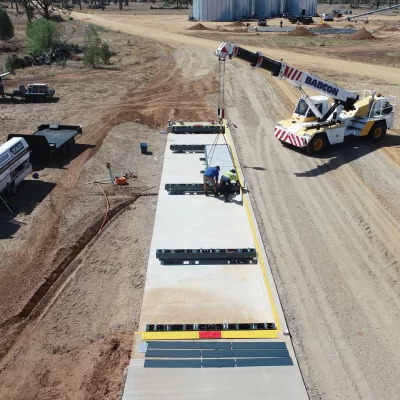

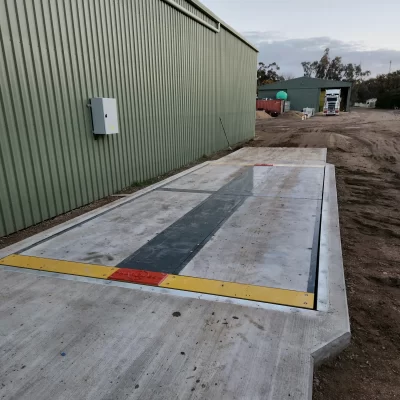

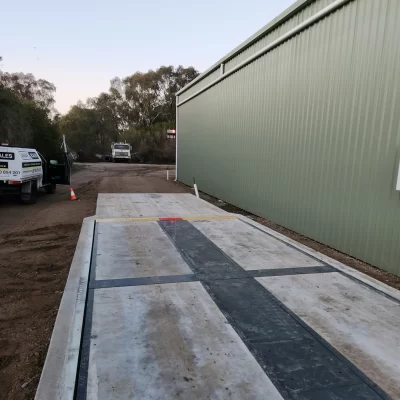

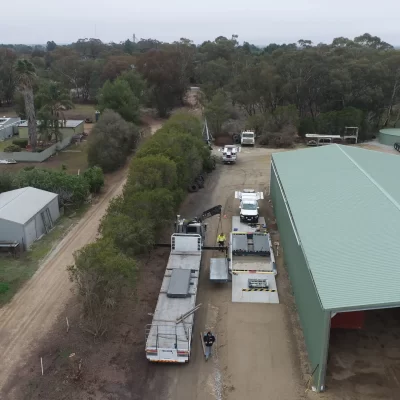

Weighbridge Gallery
Balanças Marques – Weighing a New World
Founded in 1967, Balanças Marques is the largest portuguese manufacturer and exporter of weighing equipment, having been elected three times as the best weighing company in the world in international awards of the sector.
